22mm square tube, 8-inch window hinge, 2.5mm thick

Product Introduction: 8-Inch Window Hinge with 22mm Square Tube – 2.5mm Thick

Our 8-inch window hinge with a 22mm square tube and 2.5mm thickness is built for strength, stability, and long-lasting performance. Designed for casement and outward-opening window systems, this hinge offers reliable support in compact spaces, making it a popular choice for both residential and light commercial window applications.

Key Features:

Robust Square Tube Design:
The 22mm square tube structure provides enhanced strength and load-bearing capacity, ensuring the hinge remains stable under frequent use.

Compact 8-Inch Size:
Ideal for smaller to mid-sized window sashes, offering controlled, guided opening in tight spaces.

Heavy-Duty Thickness:
Built with 2.5mm thick steel, this hinge delivers excellent resistance to bending, deformation, and long-term wear.

Smooth Operation:
Equipped with nylon or brass sliders, allowing for quiet, low-friction movement and reduced maintenance.

Durable Finish:
Available in galvanized, powder-coated, or stainless steel finishes for improved corrosion resistance—suitable for coastal or humid environments.

Versatile Mounting:
Pre-drilled for easy installation on aluminum, steel, or uPVC windows.

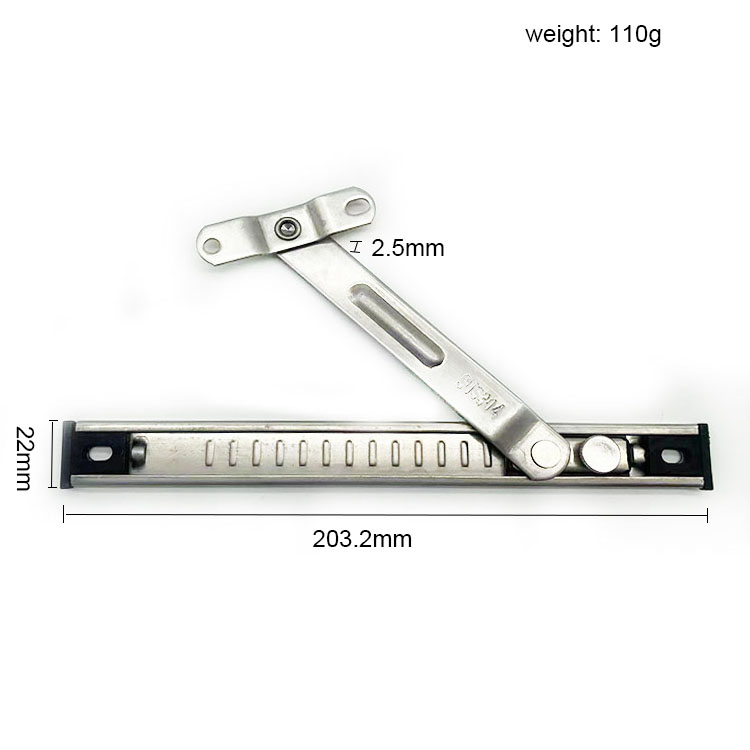

Specifications:

Length: 8 inches (203 mm)

Tube Size: 22mm x 22mm

Material Thickness: 2.5mm

Material Options: Galvanized steel / Stainless steel / Powder-coated

Opening Angle: Up to 60°–75° depending on application

Weight Capacity: Suitable for sashes up to 20–30 kg

Applications:

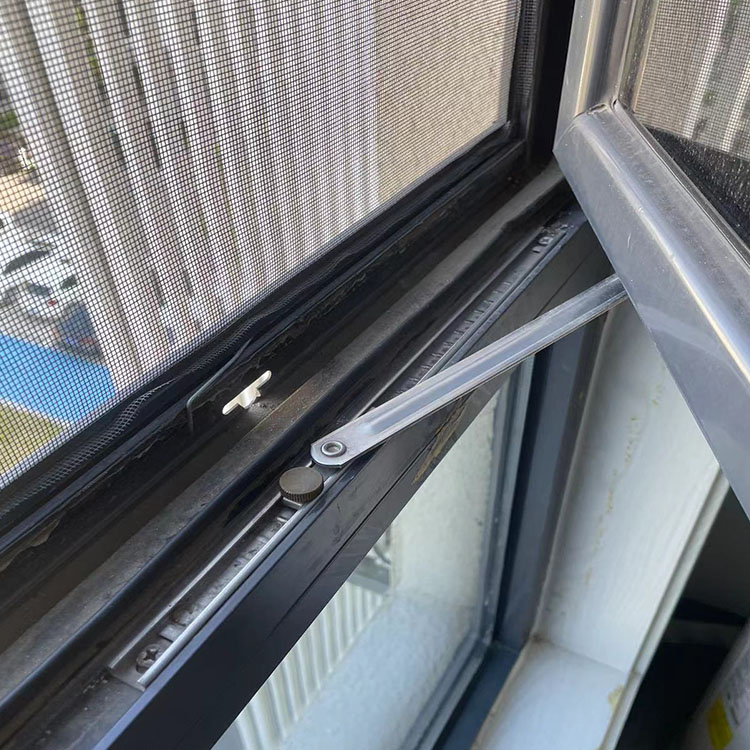

Side-hung or top-hung windows

Residential and light commercial buildings

Narrow window openings in bathrooms, kitchens, and corridors

Projects requiring compact size with high strength
